Special Order Tooling

LANCE TOOL (Upform)

For air flow, decoration, location marker, shear tab, wire harnesses or clip attachment

  • LOUVER TOOL (Upform)

    Providing air flow or ventilation.

  • BRIDGE TOOL (Upform & Downform)

    The hook, the guide of partition

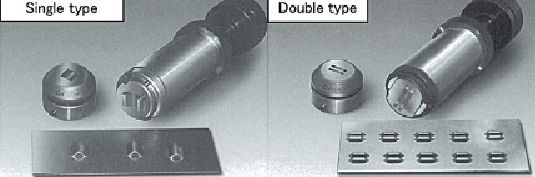

  • GUIDE RAIL TOOL (Upform)

    Retainer for printed circuit board

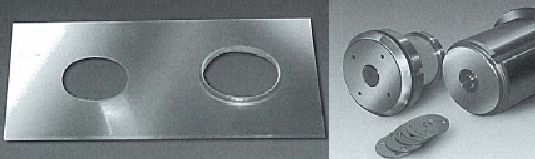

  • BURRING TOOL (Upform two-process) Round

    Threading for screw and increased bearing area for tubes etc.,

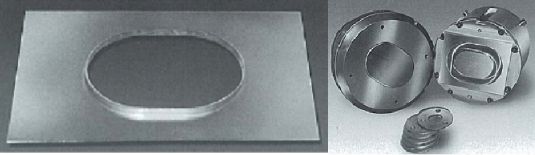

  • BURRING TOOL (Upform two-process) shape

    The operation box, the cover of machines

  • ENDLESS BURRING TOOL

    The duct flange, the cover of machine

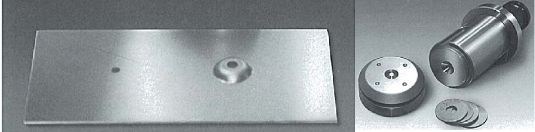

  • COUNTERSINK COINING TOOL (upform/downform two-process type)

    Making screw and rivet head to sit flush or below the surface of the material

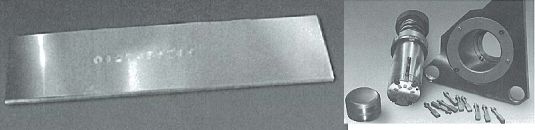

  • B SIZE AUTO-INDEX STAMPING TOOL (Downform) PAT.P

    10 pieces (0~9) stamps by auto-index station

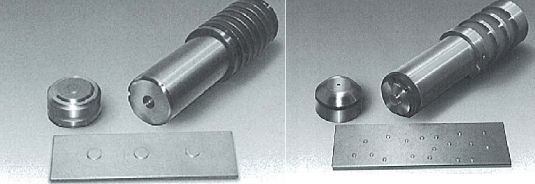

  • EMBOSS TOOL (Upform 2-process type) Round & Shape

    EMBOSS Upform – Providing a recess or protrusion. EMBOSS Downform – The bolt head or nut head sink to the sheet

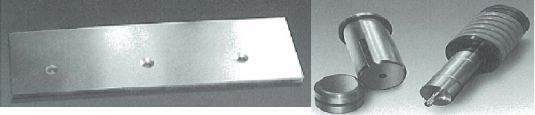

  • COUNTERSINK TOOL (Upform & Downform)

    The flat head bolt sink to the sheet

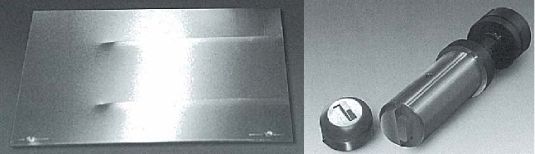

  • BEADING TOOL (Upform)

    Reinforce of the sheet

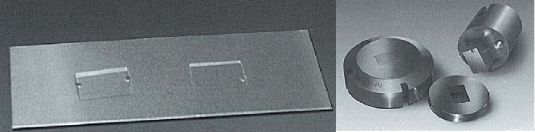

  • HALFSHEAR TOOL (Upform & Downform) A-Sta. & B.Sta.

    Location of small parts on the components

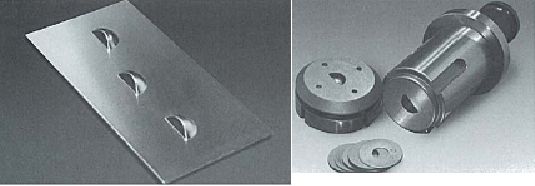

  • KNOCKOUT TOOL (Upform & Downform) Shape

    Allowing optional pathway for electrical cable

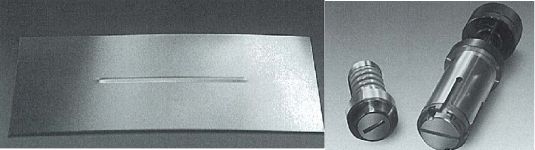

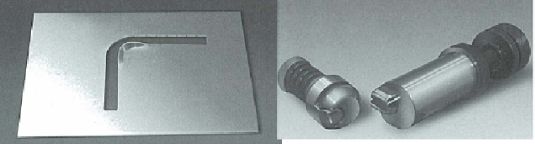

  • SLIT TOOL

    Makes the slit clearance zero
