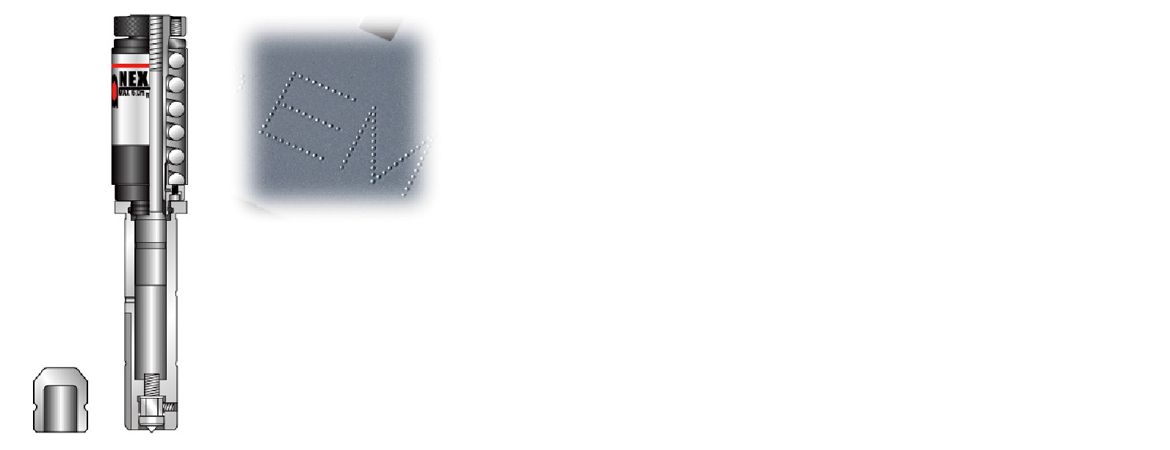

High Speed Marking Tools

FEATURES

  • Dot marking can be performed on EM/AE by utilizing high speed capacity.
  • AP100 availability enables flexible marking including drawing and letters.
  • Air-blow type enables intensive hit counts.

Specifications

High Speed Marking Tool
Tool TypeNCT Long Ast 1/2” Air-blow
Material ThicknessNonadjustable Type Max. thickness : 6.0mm
MaterialMild Steel ・ Stainless ・ Aluminum
Form DirectionDownward (Mark on punch side)
Punch TipAngle : 90° / Depth is adjustable.
Auto ProgramApplicable to AP100
Reference Hit rate(Stroke=1.4mm Pitch=0.5mm)
EM2510NT1800 min-1 { hpm }
