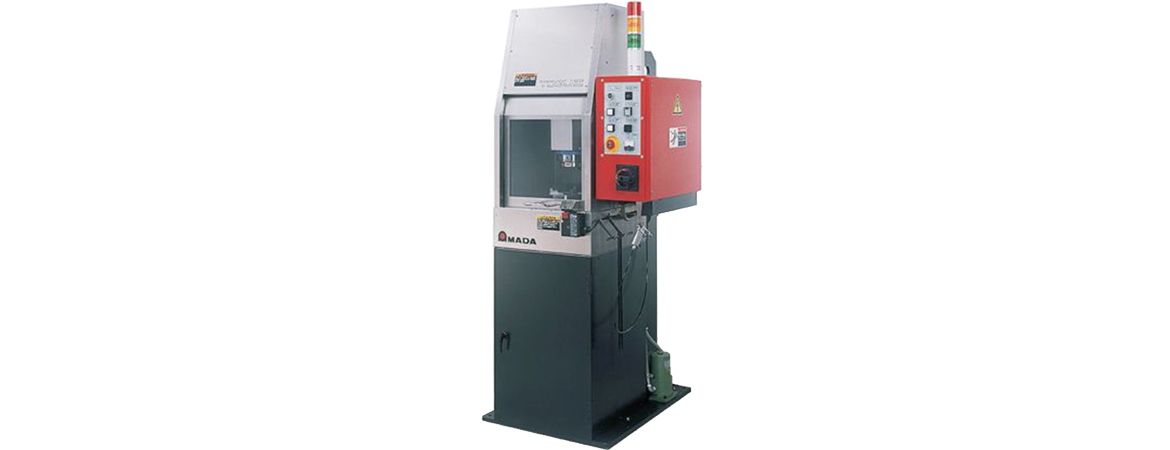

TOGU III

Achieve the Perfect Grind every time

Automated, precise, high-speed grinding

The TOGU -III has been created to assist the grinding process and to considerably reduce the loss in production time and will help every customer obtain the highest quality of grinding.

Development Concept

High-precision automated grinding designed specially for turret punch press tooling.

Servo-controlled wet rotary grinding provides unsurpassed surface finish while significantly increasing tool life.

Easy operation, experienced grinding operator is not required.

Small footprint allows strategic shop placement.

Specifications

TOGU III
Machine Weightkg480 (excluding a transformer)
Power SupplyAC200/220V 3 phase 2.5k VA
A Transformer is used outside AC200/220V area
Air SupplyL/min1700
Grinding WheelCBN ø135
Max. diameter too, sizeø160
Max. Grindingmm0.99
Main axis motor1.5KW 2P
Main axis rotation speedrpm2810/3000
Main axis travelmm240
Main axis feed motorDC Server Motor 40w
Main axis feed speed-highmm/min600
Main axis feed speed-middlemm/min60
Main axis feed speed-lowmm/min0.06
Table motor0.1kw 4P
Table rotation speedrpm (50/60 Hz)60/72
Cooling water pump motor0.06kw 2P
Cooling water pump motor flow20/25L/ (50/60 Hz)
