VENTIS-AJe Series

World’s First Fiber Laser with LBC Technology

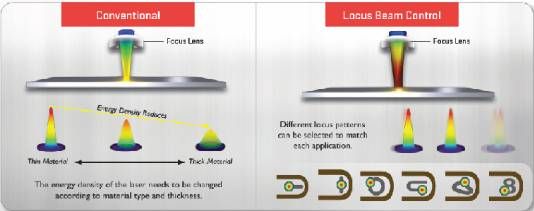

VENTIS is a new laser system equipped with LBC Technology (Locus Beam Control) which allows to modulate the beam and control the movement of the laser beam, ensuring maximum efficiency based on the type of material and thickness to be processed.

  • Productivity mode

    In Productivity mode - Realise a significant improvement throughput when cutting stainless steel and aluminium with nitrogen. And these performance levels, in tandem with lower energy consumption, can reduce processing costs by up to 75% in some instances.

  • Quality mode

    Quality mode - Improves the surface roughness and resultant dross levels. Cut quality is assured by reducing surface roughness by approximately 50% when compared with a conventional machine. And can eliminate secondary operations such as deburring and reduce processing costs.

  • Kerf-Control mode

    Kerf Control mode enables long-term stable processing during automated system operation. By controlling the locus beam, the kerf width can be controlled to be 2.3 times wider than general fiber lasers. In fact, the system is able to control kerf width for optimal efficiency based on the material type and thickness being processed.

Specification

ModelVENTIS-3015 AJeVENTIS 4020 AJe
Registered model nameVN3015AJEVN4020AJE
Axis travel distance X×Y×Zmm3070×1550×1004070×2050×100
Maximum processing dimensions X×Ymm3070×15504070×2050
Maximum material masskg9201570
NC typeAMNC 4ie
Axis control methodX, Y, Z axes (simultaneous 3-axis control) + B axis + CF axis
OscillatorAMADA AJ-4000S / AJ-6000S
ChillerRKE5502B-VA-UP2BP-L / RKE7502B-VA-U2BP-L
Dust collectorPXN-6XA / JXN-6XA (self-standing pail can type)
Axis travel methodX- and Y-axis: Rack and pinion Z-axis: Ball screw
Rapid traverse X×Y Compositem/min170
Processing feed rate X×Ym/min0 ~ 120 (maximum command speed)
Least input incrementmm0.001

Oscillator specification

ModelAJ4000SAJ6000S
Oscillation MethodLD excitation fiber laser
Rated laser powerW40006000
Stability%±2.0 or lower
Pulse peak outputW40506050
Pulse frequencyHz1~10000
Duty%0~100
Wave lengthµm1.08
