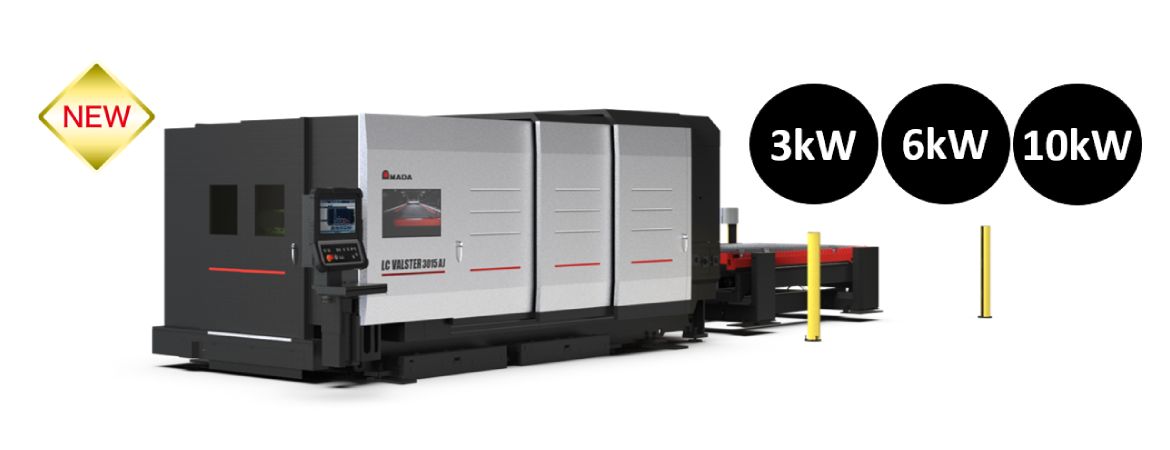

LC Valster AJ Series
LC Valster AJ Technology

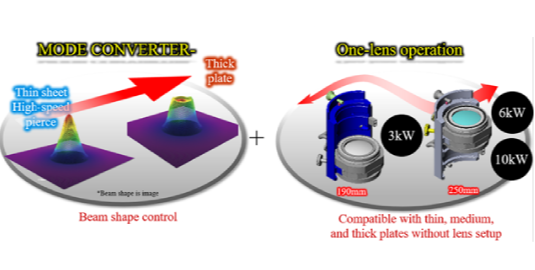

Beam control technology and no need for lens replacement
Realizes high-speed and stable processing from thin to thick sheets

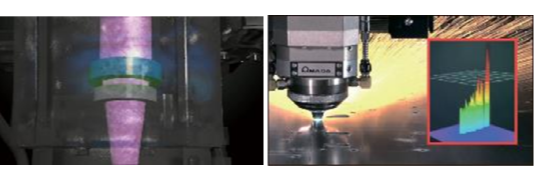

Laser Integration System
Making Laser Processing more efficient with state of the art sensors

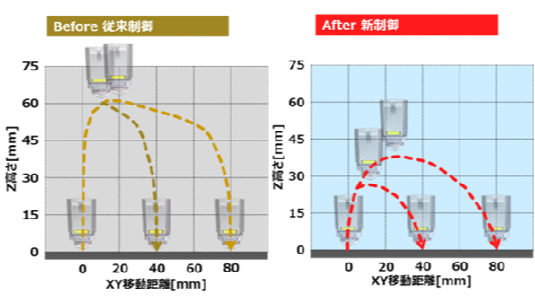

Improved machine controllability (with AMNC 3i Plus)
Optimization of head control and adjustment of joint amount during operation
Specifications
Model name | LC VALSTER3015AJG | |
---|---|---|
Axis movement method | X-axis and Y-axis: Rack & pinion Z-axis: Ball screw | |
Maximum machining dimensions X*Y | mm | 3070×1550 |
Axis travel X*Y*Z | mm | 3070×1550×150 |
Maximum rapid feed rate (X and Y axes) | m/min | 120 |
Maximum rapid feed rate (Z-axis) | m/min | 80 |
Cutting feedrate | 0~120m/min(Maximum commandable speed) | |
Control method | X/Y/Z-axis control (simultaneous control 3 axes) B-axis | |
Maximum workpiece weight | kg | 920 |
Pass line | mm | 940 |
Oscillator type | FL3000 | FL6000 | FL10000 | |
Oscillation method | LD-pumped Fiber lasers | |
Rated output | W | 3000 / 6000 / 10000 |
NC equipment | AMNC 3i | |
Partition | Full-partition ceiling open/close integrated telescopic type | |
Total power receiving capacity (not including dust collectors and chillers) | kVA | 13 / 22.6 / 34.5 |
Machine dimensions X*Y*Z | mm | 9907×2953×2390 |
Machine mass ( main body only ) | kg | 8600 |
